Gas absorption heat pump - GAHP-GS Plus | Robur

Izvēlieties produkta modeli:

Gas absorption heat pump, geothermal, takes heat from Ground and gives it to Water for heating or domestic hot water production, maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 286 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrejs Policans

LV, RU, EN
+371 291 17565

Tirdzniecības pārstāvis Latvijā Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
GAHP-GS Plus - geothermal, takes heat from Ground and gives it to Water for heating or domestic hot water production
GAHP-GS Plus Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 286 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-GS Plus
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 286 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Modelis: GAHP-GS Plus
Heating operation mode data
Seasonal space heating energy efficiency class (55°C operation)
ErP
A++
Seasonal space heating energy efficiency class (35°C operation)
ErP
A+
G.U.E. gas utilization efficiency at 35°C water and 0°C ground temperature
%
165
Heating capacity at 35°C water and 0°C ground temperature
kW
43,0
Heating water flow (nominal / maximum / minimum)
l/h
3000 / 4000 / 2000
Water pressure drop (outlet water at 35°C, at nominal water flow)
bar
0,46
Maximum outlet water temperature (heating / DHW)
°C
+65 / +70
Maximum inlet water temperature (heating / DHW)
°C
+55 / +60
Minimum inlet water temperature in continuous operation
°C
+30
Darba vides temperatūras intervāls
°C
-15 / +45
Operating temperature range with winter kit
°C
-30 / +45
Renewable source data
Heating capacity recovered from renewable source at 35°C water and 0°C ground temperature
kW
16,9
Maximum renewable source water return temperature
°C
+45
Minimum renewable source delivery water temperature
°C
-5
Renewable source water with 25% glycol flow (nominal / maximum / minimum)
l/h
3020 / 4000 / 2000
Renewable source water pressure drop (outlet water at -5°C, at nominal water flow)
bar
0,57
Burner characteristics
Heat input (nominal, at 15°C - 1013 mbar)
kW
26,4
Heat input (real)
kW
26,0
Dabasgāzes (G20) patēriņš pie 15 °C - 1013 mbar
m³/st.
2,79
Sašķidrinātas gāzes (LPG G30 / G31) patēriņš pie 15 °C - 1013 mbar
kg/h
2,09 / 2,05
Instalācijas dati
Elektrības padeve
V/Hz
230/50
Nominal electrical power consumption
kW
0,41
Sound pressure at 5 meters distance from unit front side in free field
dB(A)
44,1
IP aizsardzības klase
25
Max. water operating pressure
bar
4,0
Ūdens cauruļu pievienošana
Ø "
F 1 1/4
Gāzes savienojums
Ø "
F 3/4
Instalācijas veids
C13, C33, C43, C53, C63, C83, B23P, B33
Maximum flow flue condensate
l/h
4,2
Exhaust air flue diameter
mm Ø
80
Flue gas exhaust residual head
Pa
90
NOx emission class
6
Water content inside the appliance (hot / cold side)
l
4 / 3
Refigerating fluid data
Ammonia R717 content in refrigerating fluid
kg
7,0
Water H₂O content in refrigerating fluid
kg
10,0
Max. pressure of the refrigerating circuit
bar
32
Izmēri
Platums
mm
1056
Dziļums
mm
729
Augstums
mm
1280
Svars
kg
286

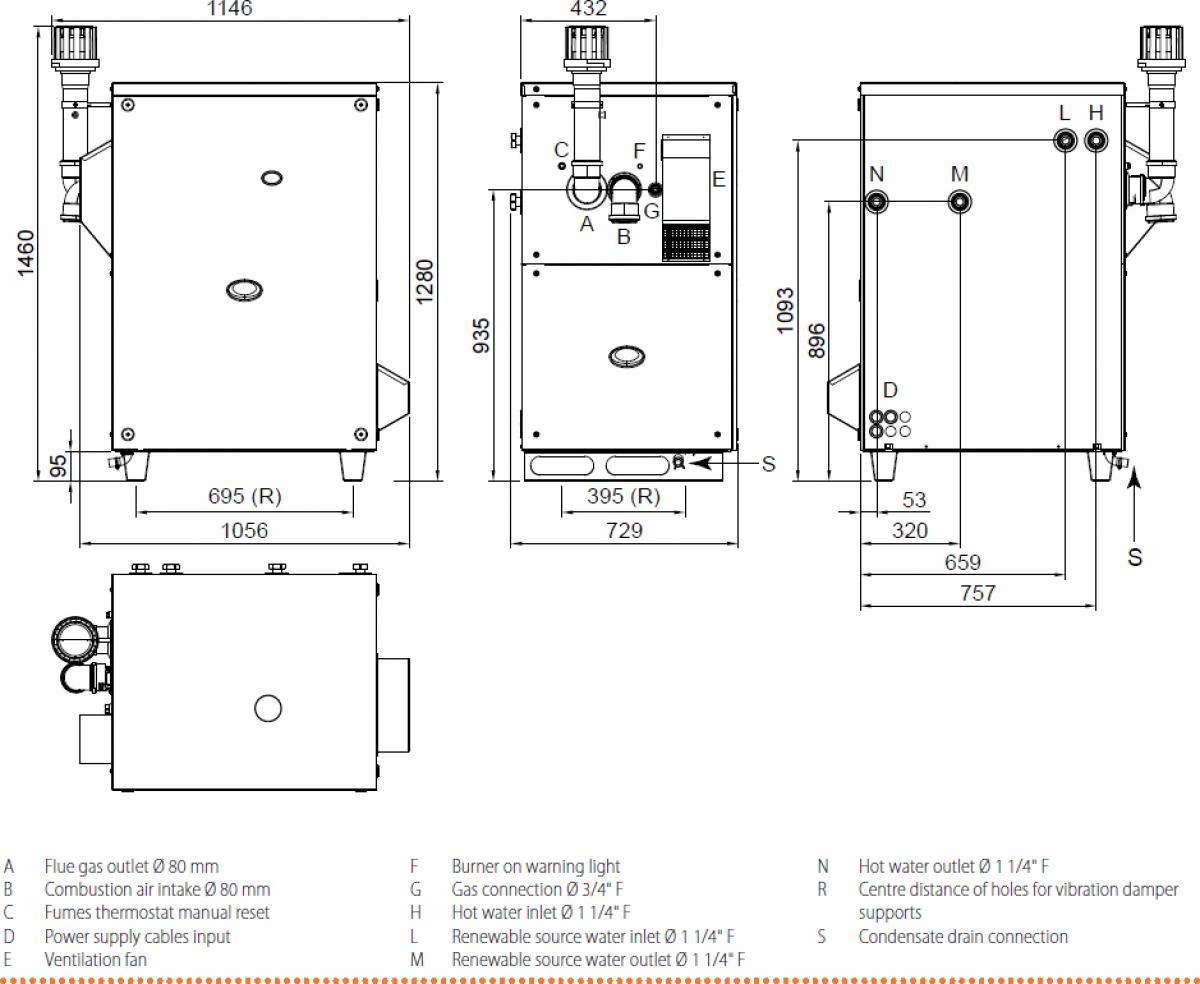

Izmēri

Modelis: GAHP-GS Plus
Izmēri

Heating capacity [kW]

Evaporator inlet
water temperature		Water delivery temperature
35°C40°C45°C50°C55°C60°C65°C*70°C
0°C 43,0 41,7 40,3 38,8 36,7 34,6 32,4 14,0
5°C 43,6 43,1 41,3 40,3 38,3 36,4 34,0 14,3
10°C 43,7 43,1 42,3 41,3 39,6 38,3 36,4 16,0
15°C 43,9 43,6 43,1 42,3 40,9 40,3 38,3 16,5

* Burner's thermal input is reduced to 50% when preparing 70°C temperature water

Gas Utilization Efficiency [GUE, %]

Evaporator inlet
water temperature		Water delivery temperature
35°C40°C45°C50°C55°C60°C65°C*70°C
0°C 165 161 155 149 141 133 125 108
5°C 168 166 159 155 147 140 131 110
10°C 168 166 163 159 152 147 140 123
15°C 169 168 166 163 157 155 147 127

* Burner's thermal input is reduced to 50% when preparing 70°C temperature water

GAHP-GS Plus geothermal gas absorption heat pump Ground/Water
Bukleti 1.9 MB
Katalogi 13.3 MB
DDC control panel
Manuals 12.4 MB
Bukleti 795 KB
MODBUS protocol for connection to BMS 690 KB
RB100 (Robur Box 100) control interface
Manuals 3.1 MB
RB200 (Robur Box 200) control interface
Manuals 3.1 MB
Modelis: GAHP-GS Plus
Additional accessories for GAHP gas absorption heat pumps and AY boilers
OCRM009 Control panel DDC for configuring AY boilers, RTY links of those boilers, gas heat pumps
OCRM009
Control panel DDC for configuring AY boilers, RTY links of those boilers, gas heat pumps
ODSP014 RB100 (Robur Box 100) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: heating, DHW and cooling mode management; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP014
RB100 (Robur Box 100) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: heating, DHW and cooling mode management; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP023 RB200 (Robur Box 200) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: integration of third parties appliances, i.e. in case of retrofitting of existing systems; control of water circulation of primary and secondary circuits; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP023
RB200 (Robur Box 200) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: integration of third parties appliances, i.e. in case of retrofitting of existing systems; control of water circulation of primary and secondary circuits; 3-way valve management for switching heating and DHW; control and error alarm.
OKBT011 Special GAHP-A / GAHP-AR / GAHP-GS gas absorbtion heat pump winter kit, required if ambient temperature in winter gets lower than -15°C, with this protection unit can work till -30°C ambient temperature, it must be installed at the installation site
OKBT011
Special GAHP-A / GAHP-AR / GAHP-GS gas absorbtion heat pump winter kit, required if ambient temperature in winter gets lower than -15°C, with this protection unit can work till -30°C ambient temperature, it must be installed at the installation site
OSND007 Outdoor air temperature probe for DDC control panel
OSND007
Outdoor air temperature probe for DDC control panel
OSND004 Immersion temperature proble
OSND004
Immersion temperature proble
OPMP008 Water pump WILO STRATOS PARA 25-12 for use with gas absorption heat pumps
OPMP008
Water pump WILO STRATOS PARA 25-12 for use with gas absorption heat pumps
ODSP033 Roburberry microcomputer for remote monitoring and control of devices, connects to the DDC control panel via RS485 port
ODSP033
Roburberry microcomputer for remote monitoring and control of devices, connects to the DDC control panel via RS485 port
ODSP052 GSM modem for Roburberry microcomputer
ODSP052
GSM modem for Roburberry microcomputer
RBCLOUD2Y 2-year free connection of the Roburberry microcomputer to the Robur Cloud remote device monitoring and control system
RBCLOUD2Y
2-year free connection of the Roburberry microcomputer to the Robur Cloud remote device monitoring and control system
Antivibration spring kits for GAHP gas absorption heat pumps and AY boilers
ONTV012 Antivibration springs kit for single GAHP gas absorption heat pump or single AY gas boiler, consists of 4 pcs. of springs, recommended to use when installing unit inside building or on the roof
ONTV012
Antivibration springs kit for single GAHP gas absorption heat pump or single AY gas boiler, consists of 4 pcs. of springs, recommended to use when installing unit inside building or on the roof
