GAHP-A Plus - takes heat from Air and gives it to Water for heating or domestic hot water production
GAHP-A PLUS STANDARD Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 44.6 kW (A7/W35), G.U.E. gas utilization efficiency 172% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.84 kW, sound pressure level (at 5 m distance) 57.6 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 352 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A PLUS STANDARD
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 44.6 kW (A7/W35), G.U.E. gas utilization efficiency 172% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.84 kW, sound pressure level (at 5 m distance) 57.6 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 352 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A PLUS LOW-NOISE Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 44.6 kW (A7/W35), G.U.E. gas utilization efficiency 172% (A7/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption while fan working on min/max speed 0.45/0.77 kW, sound pressure level while fan working on min/max speed (at 5 m distance) 41.5/54.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 363 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A PLUS LOW-NOISE
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 44.6 kW (A7/W35), G.U.E. gas utilization efficiency 172% (A7/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption while fan working on min/max speed 0.45/0.77 kW, sound pressure level while fan working on min/max speed (at 5 m distance) 41.5/54.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 363 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Modelis: GAHP-A PLUS STANDARD
Heating operation mode data
Seasonal space heating energy efficiency class (55°C operation)
ErP
A+
Seasonal space heating energy efficiency class (35°C operation)
ErP
A+
G.U.E. gas utilization efficiency at 35°C water and 7°C air temperature
%
172
Heating capacity at 35°C water and 7°C air temperature
kW
44,6
Heating water flow (nominal / maximum / minimum)
l/h
2500 / 4000 / 2000
Water pressure drop (outlet water at 50°C, at nominal water flow)
bar
0,31
Maximum outlet water temperature (heating / DHW)
°C
+65 / +70
Maximum inlet water temperature (heating / DHW)
°C
+55 / +60
Minimum inlet water temperature in continuous operation
°C
+30
Darba vides temperatūras intervāls
°C
-15 / +45
Operating temperature range with winter kit
°C
-30 / +45
Burner characteristics
Heat input (nominal, at 15°C - 1013 mbar)
kW
26,4
Heat input (real)
kW
26,0
Dabasgāzes (G20) patēriņš pie 15 °C - 1013 mbar
m³/st.
2,79
Sašķidrinātas gāzes (LPG G30 / G31) patēriņš pie 15 °C - 1013 mbar
kg/h
2,09 / 2,05
Ventilatora dati
Maks. gaisa plūsma
m³/st.
11000
Instalācijas dati
Elektrības padeve
V/Hz
230/50
Nominal electrical power consumption
kW
0,84
Sound pressure at 5 meters distance from unit front side in free field
dB(A)
57,6
IP aizsardzības klase
25
Max. water operating pressure
bar
4,0
Ūdens cauruļu pievienošana
Ø "
F 1 1/4
Gāzes savienojums
Ø "
F 3/4
Instalācijas veids
B23P, B33, B53P
Maximum flow flue condensate
l/h
4,2
Exhaust air flue diameter
mm Ø
80
Flue gas exhaust residual head
Pa
90
NOx emission class
6
Water content inside the appliance
l
4
Refigerating fluid data
Ammonia R717 content in refrigerating fluid
kg
7,5
Water H₂O content in refrigerating fluid
kg
10,0
Max. pressure of the refrigerating circuit
bar
32
Izmēri
Platums
mm
904
Dziļums
mm
1264
Augstums
mm
1446
Svars
kg
352

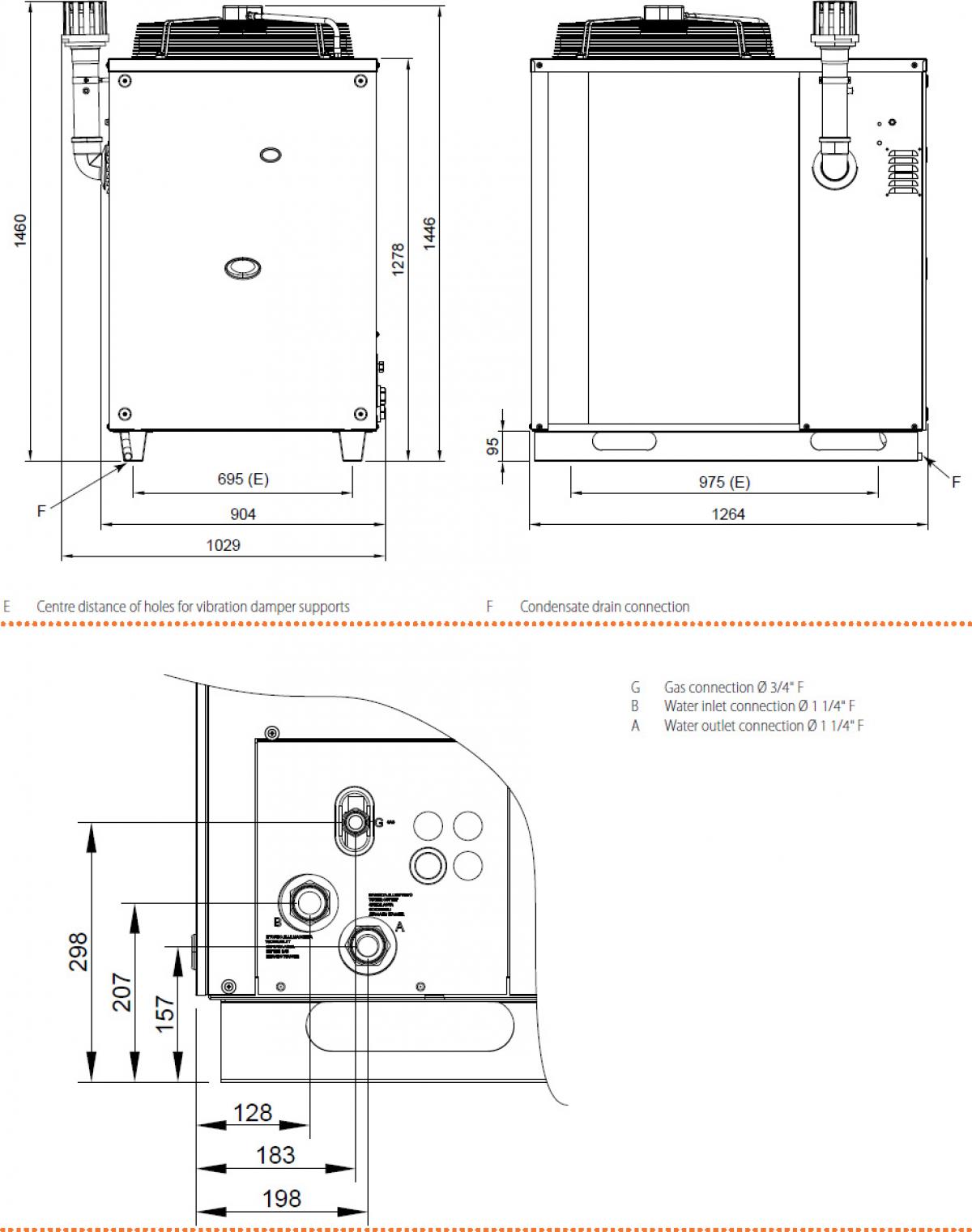

Izmēri

Modelis: GAHP-A PLUS STANDARD
Izmēri

Heating capacity [kW]

Water delivery temperature
35°C40°C45°C50°C55°C60°C65°C*70°C
Outside air temperature-30°C The performance of the GAHP-A unit with winter kit for temperatures below -22°C to -30°C remains constant, therefore in this temperature range the same heating capacity of -22°C must be considered With Winter Kit
-----
-22°C 34,8 32,8 30,7 28,7 26,8 25,4 23,9 -
-20°C 35,2 33,2 31,1 29,1 27,2 25,7 24,2 -
-15°C 36,1 34,1 32,0 30,1 28,2 26,5 24,7 -
-14°C 36,3 34,3 32,2 30,3 28,4 26,6 24,9 -
-13°C 36,6 34,5 32,4 30,5 28,7 26,8 25,0 -
-12°C 36,8 34,7 32,6 30,7 28,9 27,0 25,1 -
-11°C 37,1 35,0 32,9 31,0 29,1 27,2 25,3 -
-10°C 37,6 35,4 33,3 31,3 29,4 27,4 25,5 -
-9°C 38,1 36,0 33,9 31,8 29,8 27,8 25,8 -
-8°C 40,3 38,3 36,3 33,5 30,8 28,7 26,7 -
-7°C 41,3 39,2 37,1 34,3 31,5 29,4 27,3 11,8
-6°C 41,9 39,7 37,6 34,8 32,0 29,8 27,6 11,9
-5°C 42,2 40,2 38,1 35,2 32,4 30,1 27,9 12,0
-4°C 42,5 40,5 38,5 35,7 32,9 30,5 28,2 12,0
-3°C 42,9 40,9 38,9 36,2 33,4 30,9 28,5 12,1
-2°C 43,2 41,2 39,3 36,5 33,7 31,2 28,7 12,2
-1°C 43,4 41,6 39,7 37,0 34,2 31,6 29,0 12,3
0°C 43,7 41,9 40,1 37,4 34,7 32,0 29,3 12,3
1°C 41,6 41,0 40,4 37,8 35,2 32,4 29,6 12,4
2°C 44,2 42,5 40,8 38,2 35,6 32,8 29,9 12,5
3°C 44,4 42,8 41,2 38,7 36,1 33,2 30,3 12,6
4°C 44,5 43,0 41,5 39,1 36,7 33,7 30,8 12,7
5°C 44,6 43,2 41,8 39,5 37,3 34,8 31,4 12,8
6°C 44,6 43,3 42,0 39,9 37,8 34,9 32,0 13,0
7°C 44,6 43,4 42,3 40,3 38,4 35,4 32,5 13,1
8°C 44,6 43,5 42,4 40,6 38,8 35,9 33,0 13,3
9°C 44,6 43,6 42,5 40,9 39,3 36,4 33,5 13,5
10°C 44,7 43,6 42,5 41,1 39,7 36,8 34,0 13,6
11°C 44,7 43,6 42,6 41,3 40,0 37,2 34,4 13,8
12°C 44,7 43,7 42,6 41,5 40,3 37,6 34,8 13,9
13°C 44,7 43,7 42,7 41,6 40,5 37,9 35,2 14,0
14°C 44,7 43,7 42,7 41,7 40,6 38,1 35,6 14,1
15°C 44,7 43,8 42,8 41,8 40,8 38,4 36,0 14,2
20°C 44,7 43,9 43,0 42,2 41,3 39,5 37,7 14,6
25°C 44,7 43,9 43,2 42,4 41,6 40,3 39,0 15,0
30°C 44,7 43,9 43,2 42,5 41,9 40,8 39,8 15,1
35°C 44,7 43,9 43,2 42,5 41,9 41,1 40,3 15,2

* Burner's thermal input is reduced to 50% when preparing 70°C temperature water

Gas Utilization Efficiency [GUE, %]

Water delivery temperature
35°C40°C45°C50°C55°C60°C65°C*70°C
Outside air temperature-30°C The performance of the GAHP-A unit with winter kit for temperatures below -22°C to -30°C remains constant, therefore in this temperature range the same GUE of -22°C must be considered With Winter Kit
-----
-22°C 134 126 118 111 103 98 92 -
-20°C 136 128 120 112 105 99 93 -
-15°C 139 131 123 116 108 102 95 -
-14°C 140 132 124 117 109 102 96 -
-13°C 141 133 125 117 110 103 96 -
-12°C 142 134 126 118 111 104 97 -
-11°C 143 135 127 119 112 105 97 -
-10°C 145 136 128 121 113 106 98 -
-9°C 147 138 130 122 115 107 99 -
-8°C 155 147 140 129 118 111 103 -
-7°C 159 151 143 132 121 113 105 91
-6°C 161 153 145 134 123 115 106 92
-5°C 162 154 147 136 125 116 107 92
-4°C 164 156 148 137 126 117 108 93
-3°C 165 157 150 139 128 119 110 93
-2°C 166 159 151 141 130 120 111 94
-1°C 167 160 153 142 132 122 112 94
0°C 168 161 154 144 134 123 113 95
1°C 160 158 156 145 135 124 114 95
2°C 170 164 157 147 137 126 115 96
3°C 171 165 159 149 139 128 117 97
4°C 171 166 160 150 141 130 119 98
5°C 171 166 161 152 143 132 121 99
6°C 172 167 162 154 146 134 123 100
7°C 172 167 163 155 148 136 125 101
8°C 172 167 163 156 149 138 127 102
9°C 172 168 163 157 151 140 129 104
10°C 172 168 164 158 153 142 131 105
11°C 172 168 164 159 154 143 132 106
12°C 172 168 164 160 155 145 134 107
13°C 172 168 164 160 156 146 136 108
14°C 172 168 164 160 156 147 137 109
15°C 172 168 165 161 157 148 138 109
20°C 172 169 166 162 159 152 145 112
25°C 172 169 166 163 160 155 150 115
30°C 172 169 166 164 161 157 153 116
35°C 172 169 166 164 161 158 155 117

* Burner's thermal input is reduced to 50% when preparing 70°C temperature water
