Ūdens gaisa sildītājs - LEO HD S EC INOX | Flowair

Izvēlieties produkta modeli:

Ūdens gaisa sildītājs, C5-h class corrosion resistance, water heat exchanger is covered with special pigmented polyurethane coating PoluAl XT Blygold which is characterized by very high resistance to corrosion and chemical compounds, AISI316L inox rotating mounting bracket, two row heat exchanger, 2-18 kW heating capacity, AISI316L stainless steel casing, modulating speed EC type axial fan, air flow 600-1650 m³/h, fan power 10-60 W, weight 16.1 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrejs Policans

LV, RU, EN
+371 209 26663

Tirdzniecības pārstāvis Latvijā Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
LEO HD - C5-h class corrosion resistance, water heat exchanger is covered with special pigmented polyurethane coating PoluAl XT Blygold which is characterized by very high resistance to corrosion and chemical compounds, AISI316L inox rotating mounting bracket
LEO HD S AC INOX Two row heat exchanger, 3-20 kW heating capacity, AISI316L stainless steel casing, three speed AC type axial fan, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 17.2 kg, 2 year WARRANTY
LEO HD S AC INOX
Two row heat exchanger, 3-20 kW heating capacity, AISI316L stainless steel casing, three speed AC type axial fan, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 17.2 kg, 2 year WARRANTY
LEO HD S EC INOX Two row heat exchanger, 2-18 kW heating capacity, AISI316L stainless steel casing, modulating speed EC type axial fan, air flow 600-1650 m³/h, fan power 10-60 W, weight 16.1 kg, 2 year WARRANTY
LEO HD S EC INOX
Two row heat exchanger, 2-18 kW heating capacity, AISI316L stainless steel casing, modulating speed EC type axial fan, air flow 600-1650 m³/h, fan power 10-60 W, weight 16.1 kg, 2 year WARRANTY
LEO HD L AC INOX Two row heat exchanger, 5-38 kW heating capacity, AISI316L stainless steel casing, three speed AC type axial fan, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 24.2 kg, 2 year WARRANTY
LEO HD L AC INOX
Two row heat exchanger, 5-38 kW heating capacity, AISI316L stainless steel casing, three speed AC type axial fan, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 24.2 kg, 2 year WARRANTY
LEO HD L IP66 INOX Two row heat exchanger, 5-38 kW heating capacity, AISI316L stainless steel casing, resistant to dust and water (IP66) axial fan, air flow 1400-3800 m³/h, fan power 158-355 W, weight 25.3 kg, 2 year WARRANTY
LEO HD L IP66 INOX
Two row heat exchanger, 5-38 kW heating capacity, AISI316L stainless steel casing, resistant to dust and water (IP66) axial fan, air flow 1400-3800 m³/h, fan power 158-355 W, weight 25.3 kg, 2 year WARRANTY
LEO HD L EC INOX Two row heat exchanger, 3-35 kW heating capacity, AISI316L stainless steel casing, modulating speed EC type axial fan, air flow 950-3000 m³/h, fan power 21-170 W, weight 22.5 kg, 2 year WARRANTY
LEO HD L EC INOX
Two row heat exchanger, 3-35 kW heating capacity, AISI316L stainless steel casing, modulating speed EC type axial fan, air flow 950-3000 m³/h, fan power 21-170 W, weight 22.5 kg, 2 year WARRANTY
LEO HD S AC EPP Two row heat exchanger, 3-20 kW heating capacity, EPP casing, three speed AC type axial fan, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 12.4 kg, 2 year WARRANTY
LEO HD S AC EPP
Two row heat exchanger, 3-20 kW heating capacity, EPP casing, three speed AC type axial fan, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 12.4 kg, 2 year WARRANTY
LEO HD S EC EPP Two row heat exchanger, 2-18 kW heating capacity, EPP casing, modulating speed EC type axial fan, air flow 600-1650 m³/h, fan power 10-60 W, weight 11.3 kg, 2 year WARRANTY
LEO HD S EC EPP
Two row heat exchanger, 2-18 kW heating capacity, EPP casing, modulating speed EC type axial fan, air flow 600-1650 m³/h, fan power 10-60 W, weight 11.3 kg, 2 year WARRANTY
LEO HD L AC EPP Two row heat exchanger, 5-38 kW heating capacity, EPP casing, three speed AC type axial fan, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 18.5 kg, 2 year WARRANTY
LEO HD L AC EPP
Two row heat exchanger, 5-38 kW heating capacity, EPP casing, three speed AC type axial fan, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 18.5 kg, 2 year WARRANTY
LEO HD L IP66 EPP Two row heat exchanger, 5-38 kW heating capacity, EPP casing, resistant to dust and water (IP66) axial fan, air flow 1400-3800 m³/h, fan power 158-355 W, weight 19.4 kg, 2 year WARRANTY
LEO HD L IP66 EPP
Two row heat exchanger, 5-38 kW heating capacity, EPP casing, resistant to dust and water (IP66) axial fan, air flow 1400-3800 m³/h, fan power 158-355 W, weight 19.4 kg, 2 year WARRANTY
LEO HD L EC EPP Two row heat exchanger, 3-35 kW heating capacity, EPP casing, modulating speed EC type axial fan, air flow 950-3000 m³/h, fan power 21-170 W, weight 16.6 kg, 2 year WARRANTY
LEO HD L EC EPP
Two row heat exchanger, 3-35 kW heating capacity, EPP casing, modulating speed EC type axial fan, air flow 950-3000 m³/h, fan power 21-170 W, weight 16.6 kg, 2 year WARRANTY
Modelis: LEO HD S EC INOX
Vispārējie dati
Sildīšanas jauda pie 70/50°C ūdens un 10°C gaisa temperatūras
kW
10,4
Gaisa pūšanas attālums (mērot horizontāli pa 0.3 m/s ātruma robežu)
m
22,5
Gaisa pūšanas attālums (mērot vertikāli pa 0.3 m/s ātruma robežu)
m
5,1
Maks. gaisa plūsma
m³/st.
1650
Ventilatora dati
Elektrības padeve
V/Hz
230/50
Maks. enerģijas patēriņš
W
60
Maks. strāvas patēriņš
A
0,55
Ventilatora tips
Modulating speed EC
IP / Izolācijas klase
54
Maks. skaņas spiediena līmenis mērīts telpā ar ietilpību 3000 m³ un ar vidējiem skaņas absorbcijas rādītājiem. Mērījums veikts 5 m attālumā no ierīces
dB(A)
54,0
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
71,0
Instalācijas dati
Maks. darba temperatūru telpā
°C
60
Apkurei izmantojamā ūdens maks. temperatūra
°C
120
Maks. darba spiediens
MPa
1,6
Ūdens cauruļu pievienošana
Ø "
½
Citi dati
Siltummainis
Covered with special pigmented polyurethane coating PoluAl XT Blygold which is characterized by very high resistance to corrosion and chemical compounds
Korpuss
AISI316L stainless steel
Izmēri
Platums
mm
560
Dziļums
mm
335
Augstums
mm
510
Svars
kg
16,1
Svars ierīce uzpildīta ar ūdeni
kg
17,3

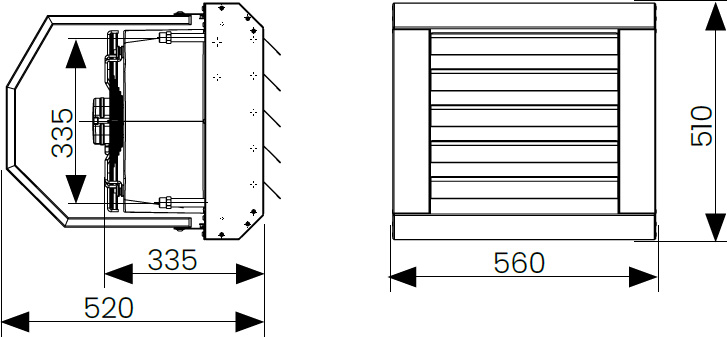

Izmēri

Modelis: LEO HD S EC INOX
Izmēri

Sildīšanas jaudas

LEO HD S EC INOX gaisa plūsmas 4 ātrums = 1650 m³/st.
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
10,4
454
4,5
29,0
9,2
403
3,7
32,0
8,1
352
2,9
35,0

10
15
20
Tw1/Tw2 = 55/45°C
8,7
760
11,9
26,0
7,6
660
9,2
29,0
6,4
558
6,8
32,0

10
15
20
Tw1/Tw2 = 45/35°C
6,3
550
6,9
21,5
5,1
446
4,8
24,0
3,9
339
3,0
27,0
LEO HD S EC INOX gaisa plūsmas 3 ātrums = 1300 m³/st.
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
9,2
401
3,6
31,0
8,2
357
3,0
33,5
7,1
311
2,3
36,0

10
15
20
Tw1/Tw2 = 55/45°C
7,7
671
9,5
27,5
6,7
582
7,4
30,0
5,7
493
5,5
33,0

10
15
20
Tw1/Tw2 = 45/35°C
5,5
477
5,4
22,5
4,5
386
3,7
25,0
3,4
294
2,3
27,5
LEO HD S EC INOX gaisa plūsmas 2 ātrums = 950 m³/st.
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
7,6
330
2,6
33,5
6,7
293
2,1
36,0
5,9
256
1,7
38,0

10
15
20
Tw1/Tw2 = 55/45°C
6,3
552
6,7
29,5
5,5
479
5,2
32,0
4,7
405
3,9
34,5

10
15
20
Tw1/Tw2 = 45/35°C
4,5
392
3,8
24,0
3,7
317
2,6
26,5
2,8
241
1,6
28,5
LEO HD S EC INOX gaisa plūsmas 1 ātrums = 600 m³/st.
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/st.
kPa
°C

10
15
20
Tw1/Tw2 = 70/50°C
5,6
244
1,5
37,5
5,0
217
1,2
39,0
4,3
189
1,0
41,0

10
15
20
Tw1/Tw2 = 55/45°C
4,7
407
3,9
33,0
4,1
354
3,0
36,5
3,5
299
2,3
36,5

10
15
20
Tw1/Tw2 = 45/35°C
3,3
289
2,2
26,5
2,7
234
1,5
28,0
2,0
176
0,9
30,0
  • PT - sildīšanas jauda
  • Tp1 - iesūcamā gaisa temperatūra
  • Tp2 - izpūšamā gaisa temperatūra
  • Tw1 - pievadāmā ūdens temperatūra
  • Tw2 - izvadāmā ūdens temperatūra
  • Qw - ūdens plūsma siltummainī
  • Δpw - ūdens spiediena kritums siltummainī

Ja vēlaties aprēķināt sildīšanas jaudu dažādos parametros, to var izdarīt ražotāja vietnē.

LEO HD fan water heater for special purpose buildings
