High hygiene standards cassette fan coil unit with stainless steel frame for mounting to suspended ceiling - PS-CLEI | PST Clima

Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrejs Policans

LV, RU, EN
+371 209 26663

Tirdzniecības pārstāvis Latvijā Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi

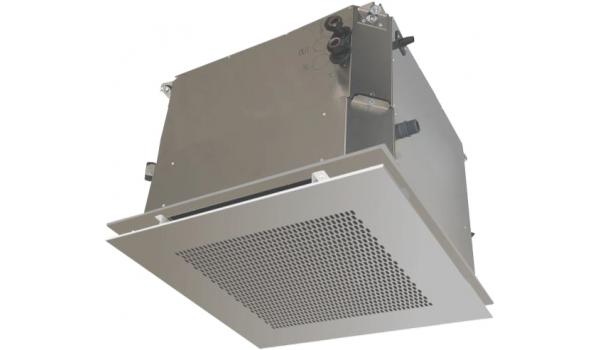

PS-CLEI 2T - cassette, for mounting to the suspended ceiling, hygienic version for premises with strict European VDI 6022 standard rules for heating, ventilation and air-conditioning (HVAC) systems, higher frame allows condensate to drain naturally under influence of gravity - no condensate pump is required, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, stainless steel (AISI 304) casing insulated with anti-condensation and sound-absorbing aluminum coated material, G3 class air filter with mesh and frame made entirely of aluminum, diffuser made of sheet metal and painted in RAL9003 white color, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-CLEI 2T 070/2R 1.94/3.96/5.85 kW sildīšanas jauda vai 1.27/2.88/4.32 kW dzesēšanas jauda 2 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 41 W, griestu atvere 600x600xH400 mm, svars 18 kg, GARANTIJA 2 gadi
PS-CLEI 2T 070/2R
1.94/3.96/5.85 kW sildīšanas jauda vai 1.27/2.88/4.32 kW dzesēšanas jauda 2 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 41 W, griestu atvere 600x600xH400 mm, svars 18 kg, GARANTIJA 2 gadi
PS-CLEI 2T 090/3R 2.29/4.90/7.47 kW sildīšanas jauda vai 1.89/4.01/6.07 kW dzesēšanas jauda 3 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 19 kg, GARANTIJA 2 gadi
PS-CLEI 2T 090/3R
2.29/4.90/7.47 kW sildīšanas jauda vai 1.89/4.01/6.07 kW dzesēšanas jauda 3 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 19 kg, GARANTIJA 2 gadi
PS-CLEI 2T 090/4R 2.43/5.46/8.60 kW sildīšanas jauda vai 2.17/4.74/7.29 kW dzesēšanas jauda 4 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 20 kg, GARANTIJA 2 gadi
PS-CLEI 2T 090/4R
2.43/5.46/8.60 kW sildīšanas jauda vai 2.17/4.74/7.29 kW dzesēšanas jauda 4 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 20 kg, GARANTIJA 2 gadi
PS-CLEI 4T - cassette, for mounting to the suspended ceiling, hygienic version for premises with strict European VDI 6022 standard rules for heating, ventilation and air-conditioning (HVAC) systems, higher frame allows condensate to drain naturally under influence of gravity - no condensate pump is required, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, stainless steel (AISI 304) casing insulated with anti-condensation and sound-absorbing aluminum coated material, G3 class air filter with mesh and frame made entirely of aluminum, diffuser made of sheet metal and painted in RAL9003 white color, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
PS-CLEI 4T 094/2R+1 2.73/5.08/7.19 kW sildīšanas jauda 1 rindas siltummainī vai 1.58/3.30/4.82 kW dzesēšanas jauda 2 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 19.5 kg, GARANTIJA 2 gadi
PS-CLEI 4T 094/2R+1
2.73/5.08/7.19 kW sildīšanas jauda 1 rindas siltummainī vai 1.58/3.30/4.82 kW dzesēšanas jauda 2 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 19.5 kg, GARANTIJA 2 gadi
PS-CLEI 4T 094/3R+1 2.73/5.08/7.19 kW sildīšanas jauda 1 rindas siltummainī vai 2.05/4.26/6.39 kW dzesēšanas jauda 3 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 20.5 kg, GARANTIJA 2 gadi
PS-CLEI 4T 094/3R+1
2.73/5.08/7.19 kW sildīšanas jauda 1 rindas siltummainī vai 2.05/4.26/6.39 kW dzesēšanas jauda 3 rindu siltummainī, gaisa plūsma 250/590/980 m³/h, skaņas spiediena līmenis 18/34/48 dB(A), maks. ventilatora jauda 45 W, griestu atvere 600x600xH400 mm, svars 20.5 kg, GARANTIJA 2 gadi
PS-CLEI hygienic version of cassette fan coil units
Manuals 1.3 MB
Katalogi 671 KB
TEL wireless remote control panel
Manuals 254 KB
Fan coils controllers
Bukleti 8.1 MB
